Pneumatic torque wrench
Air-driven and compact, with a pistol grip.
- Powerful and extremely accurate: better than ±5%
- Durable under tough conditions, with a heavy-duty gearbox for a longer working life
- Light, compact pistol-grip design for a wide range of applications
- Low noise with no vibration
- Custom reaction arms built to your requirements
Download manual Download flyer
- Torque
- 191 to 4,572 ft-lbs (260 to 6,200 Nm)
- Drive
- 3/4" to 1-1/2" square
- Accuracy
- ±5%
- Models
- XTR-500 through XTR-5000
Models

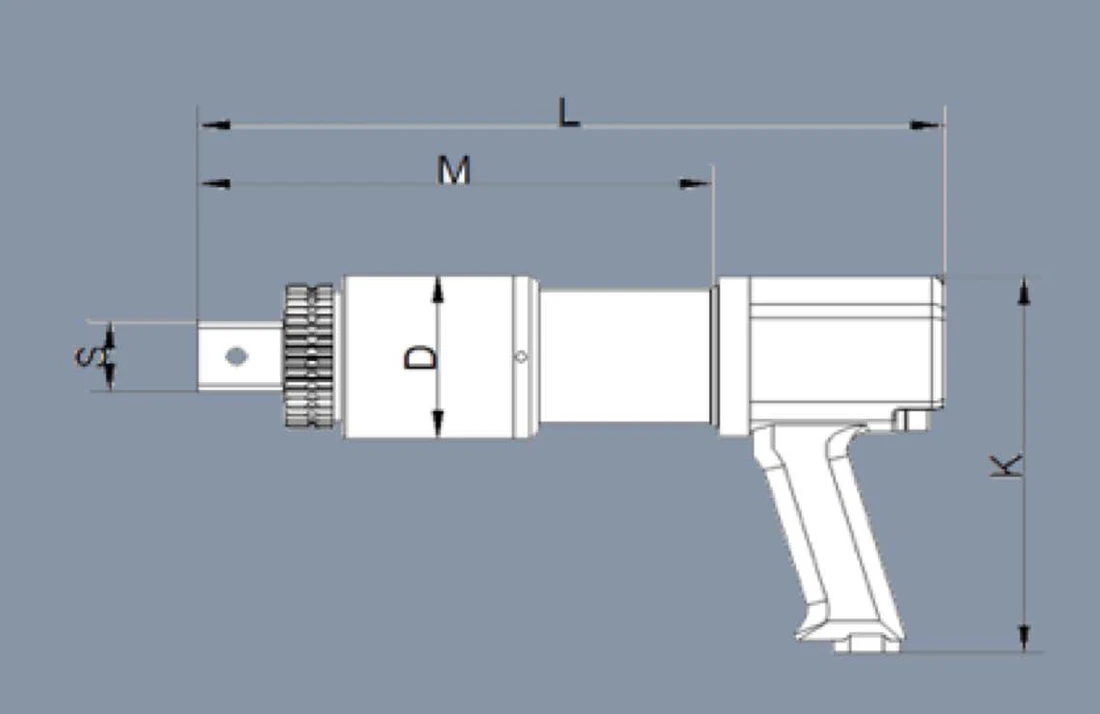

Torque range, dimensions and weight for each model.
| Model | Range (ft-lbs) | Drive | D | M | L | K | Max speed (rpm) |
|---|---|---|---|---|---|---|---|
| XTR-500 | 191 to 700 | 3/4" square | 2.91 | 6.77 | 11.89 | 7.67 | 20.5 |
| XTR-1000 | 354 to 1,209 | 1" square | 3.07 | 8.42 | 13.54 | 7.67 | 11.5 |
| XTR-2000 | 597 to 2,286 | 1" square | 3.46 | 10 | 15.12 | 7.67 | 5.5 |
| XTR-3000 | 877 to 3,171 | 1-1/2" square | 3.46 | 10 | 15.12 | 7.67 | 3.8 |
| XTR-5000 | 811 to 4,572 | 1-1/2" square | 4.45 | 11.14 | 16.25 | 7.67 | 2.7 |
Dimensions are for reference and subject to change. Torque in ft-lbs; use the unit buttons to switch dimensions and weight between inches / lbs and mm / kg.
